Shuttle XPC Slim XH610 Barebone PC Intel H610 Support 12th/13th Gen 65W Alder Lake/Raptor Lake LGA1700 CPU No Ram No HDD/SSD No CPU No OS
4.9 (114 items)
Limited Time Sale$54.00 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 212234116 | Release Date | 2026/04/06 | List Price | $36.00 | Model Number | 212234116 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

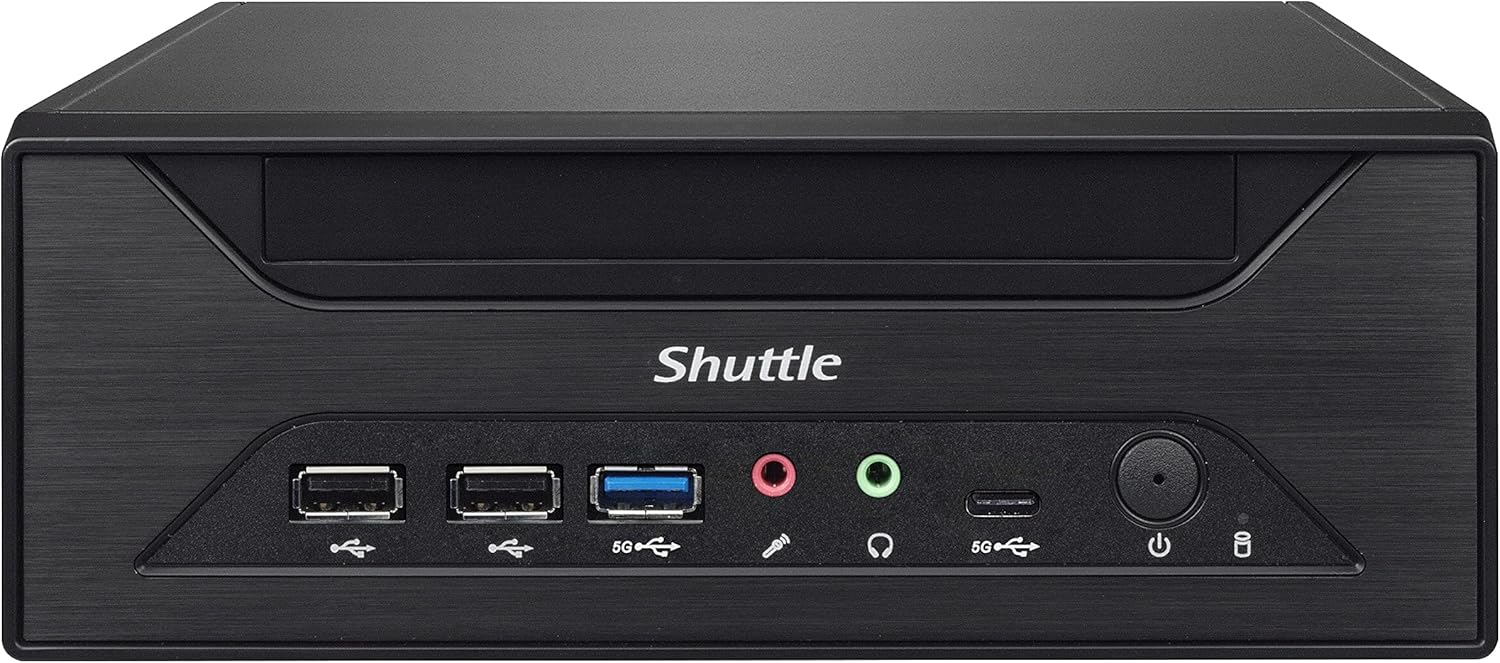

Shuttle XPC slim 3-liter XH610 is equipped with Intel® H610 chipset that supports Intel® 12th LGA1700 65W processors and delivers 4K UHD video content. Up to three displays can be used simultaneously via one HDMI 2.0b, one DisplayPort, and one VGA. Feature an extra storage expansion that supports three 2.5” HDD/SSD storage drives or one 3.5” HDD (with an optional PHD4). Besides, the series includes 4 x USB 3.2 Gen1 (Include one Type-C), 4 x USB 2.0, Intel® 1G + Intel® 2.5G LAN, 2 x M.2, and 2 x RS232 to perform its rich I/O capabilities. In addition, another optional accessory PCM31 can be chosen to support a max of five RS232 ports to connect peripheral devices and deliver a robust performance that can drive highly interactive kiosks, vending machines, digital signage, and surveillance applications.
- Supports Intel 12th/13th Generation Alder Lake LGA1700 i3/i5/i7/i9/Pentium/Celeron 65W processors with UHD Graphics No RAM No HDD/SSD No OS Compatible with Windows 11/10 (64-bit) and Linux (64-bit) .
- NOTE: The Shuttle XPC XH610 supports Intel Core processors of the 13th generation "Raptor Lake-S" starting with firmware/BIOS version XH610000.203, which has been available since March 2023. During the transition phase Shuttle XPCs still come with an older firmware/BIOS version and must first be updated with the help of a Gen 12 processor "Alder Lake-S".Supports processors with integrated graphics. Does not support the Intel K-Series processors (e.g. Core i7-11700K).
- 2x 260 pin dual Channel DDR4 SODIMM slots (up to 3200MHz), 32GB per DIMM (Max 64GB). 8x USB Ports, 1x 5.25" bay for optical slimline drive (SATA, 12.7 mm height), 2x 2.5" bay for SATA hard disk or SSD, max. 9.5 and 12.5 mm, 1x M.2-2280M slot for M.2 SSDs with PCIe x4 NVMe or SATA, 2x Gigabit LAN, 2x COM ports. 1x VGA port, 1 x HDMI 2.0, 1 x Display Port.
- Manufacturer 3-Year Warranty and free lifetime technical support
| Brand | Shuttle |
|---|---|
| Color | Black |
| RAM Type | DDR4 SDRAM |
| Model Name | XH610 |
| Model Year | 2022 |
| Resolution | 3840 x 2160 |
| Aspect Ratio | 16:9 |
| Manufacturer | Shuttle |
| Memory Speed | 3200 MHz |
| Model Number | XH610 |
| Video Output | HDMI, DisplayPort, VGA |
| BuiltIn Media | Water Cooling |
| Item Dimensions | 9 x 8 x 3 inches |
| Processor Brand | Intel |
| Processor Count | 12 |
| Total Usb Ports | 8 |
| Video Processor | Intel |
| CPU Model Number | Alder Lake/Raptor Lake |
| Operating System | Linux |
| Processor Series | None |
| Processor Socket | LGA 1700 |
| Graphics Ram Type | Shared |
| Native Resolution | 3840 x 2160 |
| Power Consumption | 65 Watts |
| Hardware Interface | USB |
| Memory Clock Speed | 3200 MHz |
| Additional Features | Hdmi |
| Hard Disk Interface | Solid State |
| Wireless Technology | Bluetooth |
| Graphics Coprocessor | Integrated Graphics |
| Graphics Description | Integrated |
| HumanInterface Input | Keyboard |
| Warranty Description | 3-Year Manufacturer |
| Hard Disk Description | SSD |
| RAM Memory Technology | DDR4 |
| Video Output Interface | HDMI, DisplayPort, VGA |
| Connectivity Technology | HDMI, LAN, USB |
| Graphics Card Interface | Integrated |
| Memory Storage Capacity | 64 GB |
| Ram Memory Maximum Size | 64 GB |
| Specific Uses For Product | Business, Education, Everyday Use |
| Display Resolution Maximum | 3840 x 2160 pixels |
| Total Number of HDMI Ports | 1 |
| Number of Component Outputs | 3 |
| Wireless Network Technology | Wi-Fi |
| Personal Computer Design Type | Barebone |
| Total Expansion Slots Quantity | 2 |
