SK16 10mm/0.394" 65Mn Spring Steel Milling Cutter Mandrel 0.005mm/0.0002" Accuracy for SK16 CNC Engraving Machine Milling Lathe Tool

1.Dimensions: This SK16 spring collet mandrel offers high precision of 0.005mm (0.0002"); Inner Diameter: 10mm (0.394"); Outer Diameter: 24mm (0.945"); Height: 46mm (1.811"). The hardness of the caliper is 46-48 HRC. It undergoes heat and cryogenic treatment to improve wear resistance and provide low temperature impact toughness.2.Design: The collet body features a reinforced structure (top design) to prevent dust and metal chips from entering during operation, which makes the tool holder and collet more durable.

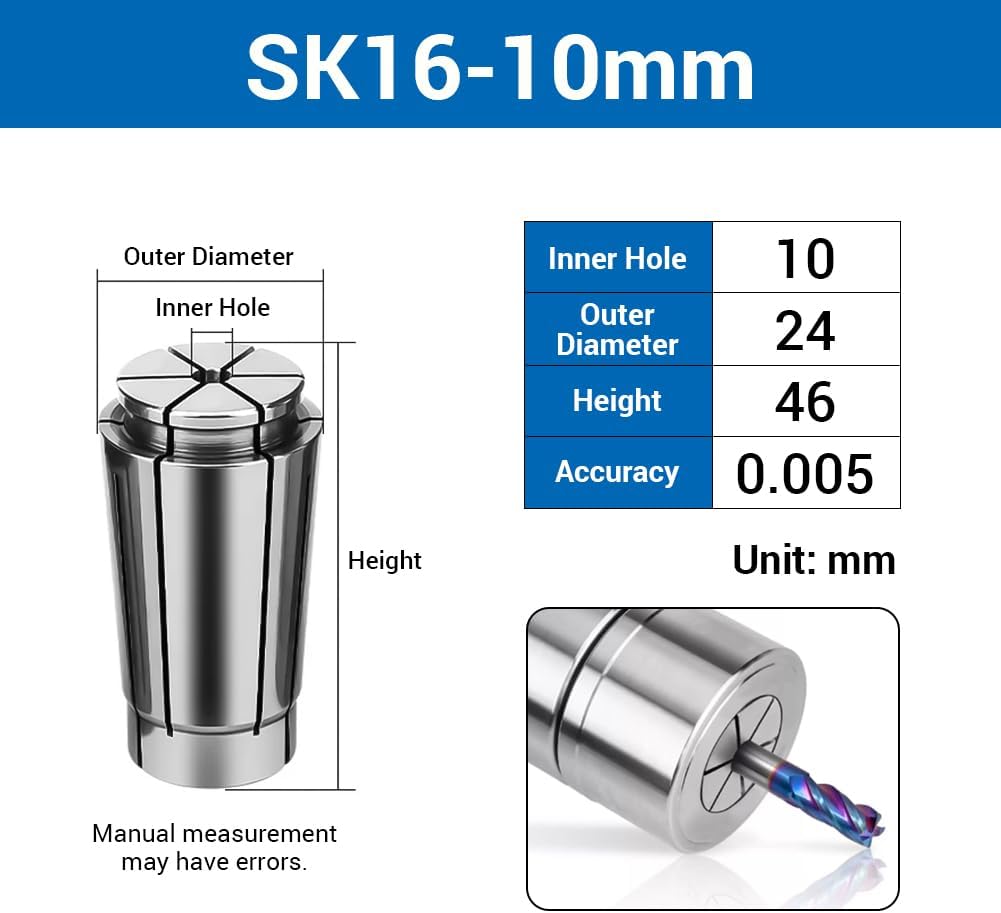

• DIMENSIONS: This SK16 spring collet chuck offers a high accuracy of 0.005mm (0.0002"); Inner Diameter: 10mm (0.394"); Outside Diameter: 24mm (0.945"); Height: 46mm (1.811"). The hardness of the caliper is 46-48 HRC. It undergoes heat and cryogenic treatment to improve wear resistance and provide impact toughness at low temperature.
• Material: These spring clamps are made of spring steel (65Mn spring steel), which ensures durability, robustness, reliability, stable performance and ease of use. In addition, the CNC caliper undergoes martensitic heat treatment to prevent deformation and cracking.

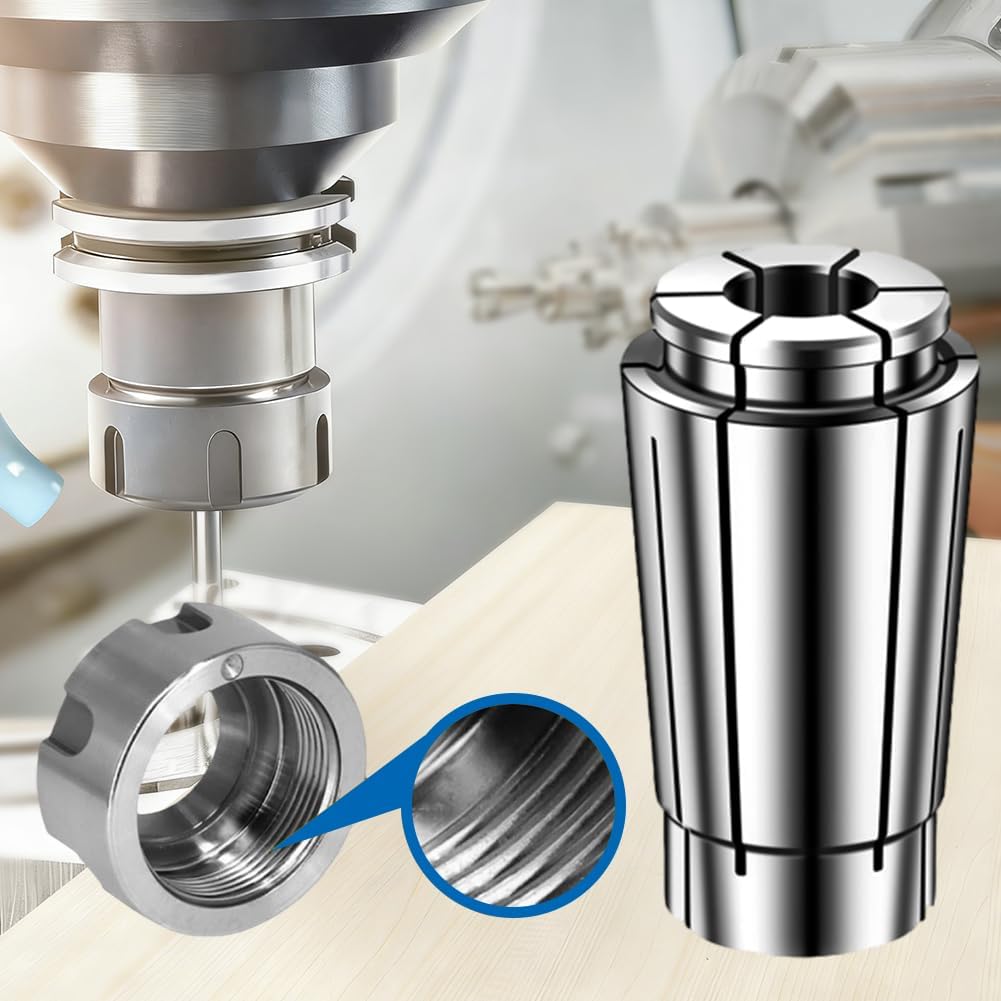

• Design: The collet body features a reinforced structure (top design) to prevent dust and metal shavings from entering during operation, which makes the tool holder and collet more durable.
• Installation Steps: 1. Insert the collet into the nut, then push the collet until you hear a which indicates that the caliper is in place; 2. Then, attach the tool to the collet, making sure it is completely in place; 3. Attach the nut to the tool holder and tighten it with a wrench; Note: Insert the collet into the nut first, then into the tool holder.
• Wide Applications The collet offers strong clamping force and high elasticity, which makes it suitable for CNC machine tools, milling machines, engraving machines, machining centers and other equipment. Note: Please refer to the size chart for specific product dimensions; actual product may differ slightly from the image, please refer to the actual product.
