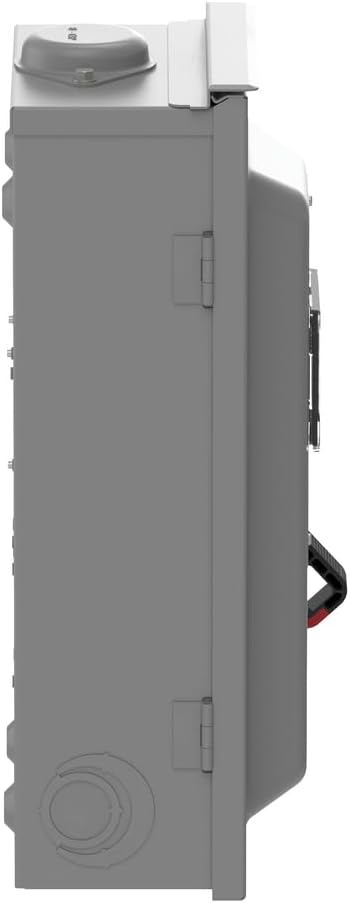

Square D by Schneider Electric VH362RB VisiPact Heavy Duty Safety Switch with Viewing Window and Red (On) and Black (Off) Indicators, Fusible 3 Pole, 30A, 600VAC/600VDC, Type 3R

Schneider Electric's Square D heavy duty safety switch is designed to be tough, reliable and provide exceptional performance in the most grueling conditions. They have been designed to have a significantly higher durability than a standard switch and have a durability three times greater than NEMA standard making it ideal for all your commercial and industrial needs. All heavy duty safety switches feature a quick-make, quick-break operating mechanism, a dual cover interlock, and a color coded indicator handle. This three blade fusible heavy duty safety switch that is rated at 60A with a voltage 600 VAC and 600 VDC. This fusible disconnect has a short circuit rating of either 10kA or 200kA depending on fuses used. This switch is Type 3R rated with a galvannealed steel enclosure and comes with factory installed viewing window. The device accepts H,K,R fuse types as shipped and can be field modified for J fuses, unit is surface mounted. The safety switch has a 3-wire configuration of 3 poles but a solid neutral can be installed in the field using solid neutral kit. The disconnect comes with standard lugs that are not grounded but equipment grounding kits can be used make lugs grounded. The wire range for this switch is AWG 12-AWG 3 aluminium and AWG 14-AWG 3 copper. All heavy duty safety switches are tested per UL98 and NEMA KS1 standards and listed in the UL files E2875 and E154828.

• HEAVY DUTY SAFETY SWITCH: The VisiPact Safety Switch is a reliable, durable, and high-performance switch designed for the most grueling conditions; It has a durability three times greater than NEMA standard to meet your commercial and industrial needs
• SWITCH FEATURES: Viewing window allows visual confirmation with door closed; QR code provides quick access to product info; Dual cover interlock blocks opening cover if switch is on & switching on if cover is open; Handle indicates ON (red) or OFF (black)
• RATINGS: With a rating of 60A with a voltage 600 VAC and 600 VDC, and a short circuit rating of 10kA or 200kA depending on fuses used, this three-blade fusible heavy duty safety switch is ideal for a wide range of commercial and industrial applications
• FUSES & WIRING: Accepts H, K, R fuse types as shipped & can be field modified for J fuses; The safety switch has a 3-wire configuration of 3 poles but a solid neutral can be field-installed; Wire range is AWG 12-AWG 3 aluminium and AWG 14-AWG 3 copper
• STANDARDS: All heavy duty safety switches are tested per UL98 and NEMA KS1 standards and listed in the UL files E2875 and E154828; This switch is Type 3R rated with a galvannealed steel enclosure
