Swimming Pool Robot Auto Robot Swimming Pool Cleaner 2052 with 20m Cable Robotic Vacuum Cleaner Cleaning Bottom and Wall Function Easy to Clean (Color : White) (White)

I.Introduction The robotic pool cleaner 2052 is a new type of highly efficient and energy-saving swimming pool cleaning robot. Through its advanced computer-controlled program, it can clean the pool walls and bottom automatically. At the same time, it filters the pool water and gets rid of suspended particles without replace the pool water. It's totally environmental-friendly. For safe operation, the cleaner works on 28V direct current. Please read this user manual carefully before use. II.Safety 1．Power supply unit position: Power supply unit needs to be placed in proper position to reach the distal end of pool for the cleaner, meanwhile as least 3.5m from pool edge. III.Specifications 1.Rated input voltage: 100VAC-230V 2.Frequency: 50Hz/60Hz 3.Output voltage: DC28V 4.Power: 118W 5.Cleaning cycle: 1/2/3h 6.Filtering capacity: appr. 16m3/h 7.Filter density: 180μm 8.Moving speed: appr. 10m/min 9.IP grade: Cleaner IPX8; Power supply unit: IPX5 10.Max. water depth: 2m 11.Working environmental temperature: 10-35℃ Function 1 ON/ OFF Power on/off Press this button, the cleaner starts to work; Press a second time, the cleaner is off. 2 CYCLE To choose working cycle When the cleaner is on, use this button to choose preferred working time. Stop the cleaner, check if anything is blocked in impeller or in transmission system

• When putting the cleaner into the water, please hold the top handle and make sure to empty the trapped air inside then the cleaner can immerse into the pool floor.
• When lifting the cleaner out of water, suspend the cleaner above water for about 10-15 seconds to empty the water inside. Please hold the top handle only and never pull the cable.
• This is a 2-motor model that can clean the pool floor, wall and waterline. It is designed for both above-ground and in-ground pools of all shapes (rectangular, round, oval, etc.) and materials (liner, concrete, tile, etc.) up to 130m?.

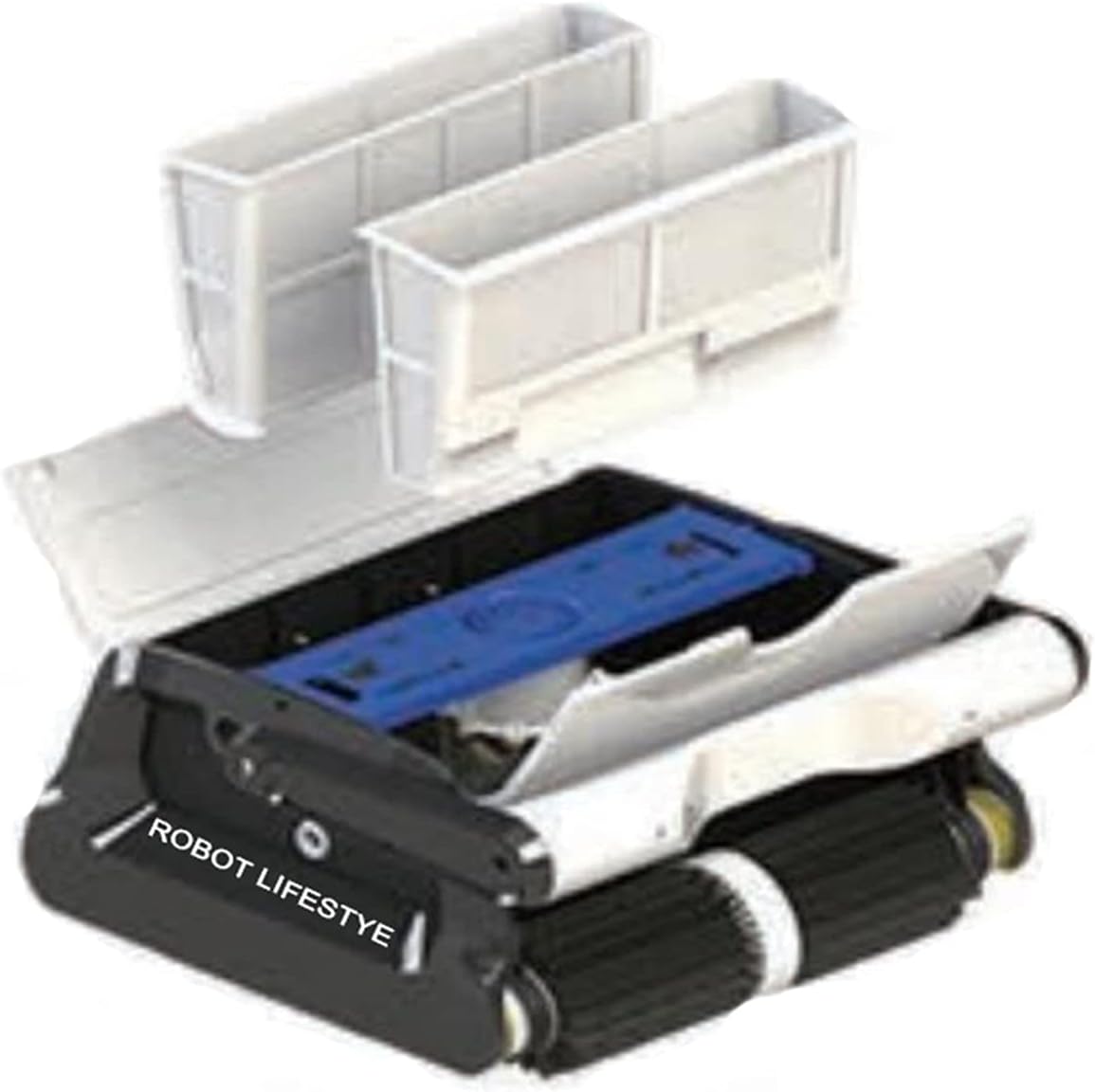

• It is equipped with 2 large-volume filter baskets that can be taken out from the top and maintained easily. It is equipped with a convenient control box where users can choose 3 working cycles according to the level of debris in pools. is ultra light and simple in structure that is really a nice partner for pools.
• Please refer to following operation if it is difficult for the cleaner to climb the wall and clean the waterline. The following operation is not necessary if the cleaner climbs the wall well.
