SZW26/LW26-20 D101.1 20A 660V 1 Pole Selector Universal Changeover Rotary Cam Switch ON-Off-ON 64X64 48X48 mm Panel Mount(ON Off ON 48X48mm)
4.3 (40 items)
Limited Time Sale$23.52 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 211073884 | Release Date | 2026/04/04 | List Price | $15.68 | Model Number | 211073884 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

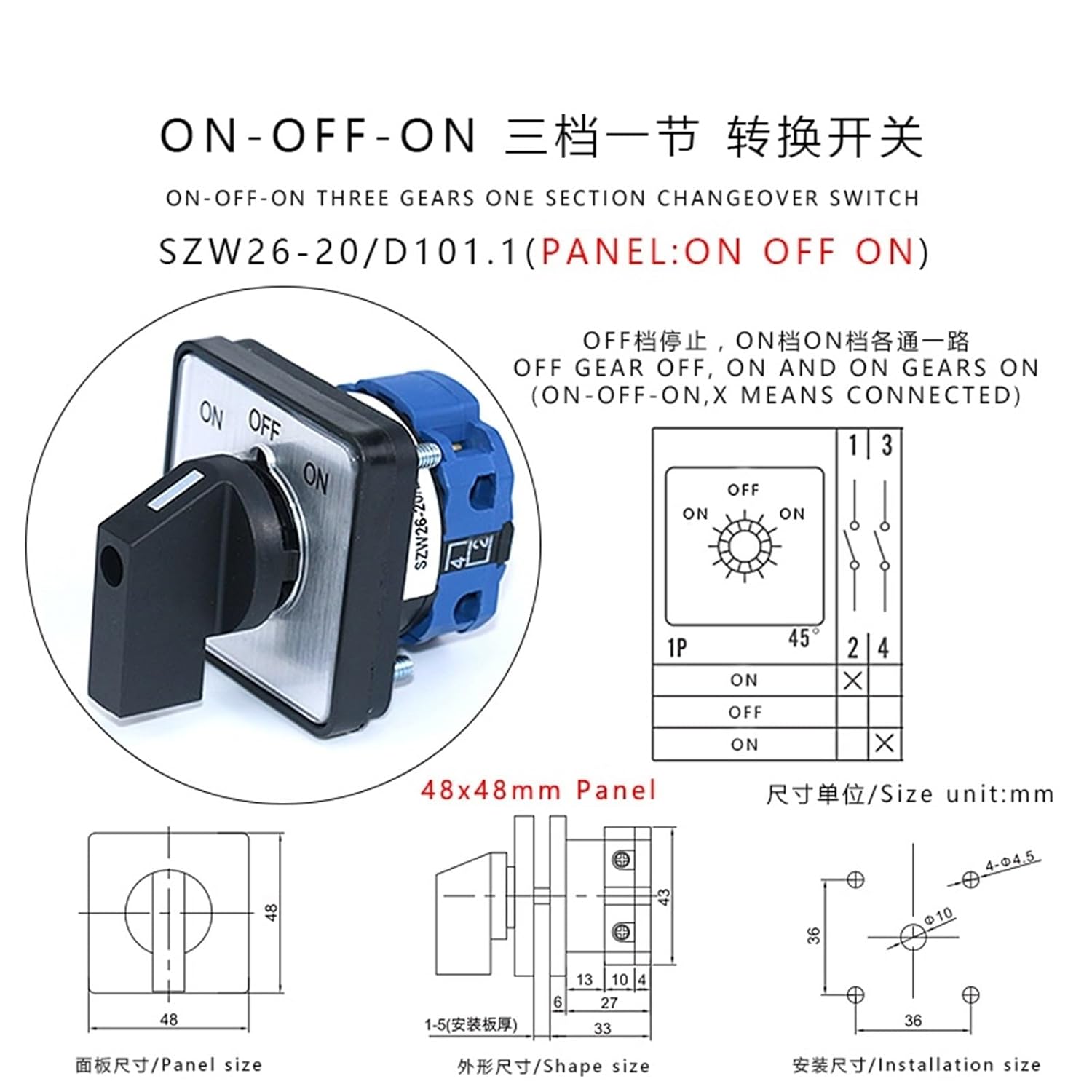

Industrial SwitchesSZW26/LW26-20 ON-OFF-ON Ith 20A Ui 660V 1 Pole D101.1 64X64 48X48 mm Panel mount Changeover Selector Universal Rotary Cam SwitchDescription1.Product Name:SZW26/LW26-20/D101.1 20A 1 Phase Universal Rotary Changeover Cam Switch2.Specification:Lacthing Selector ; Ui: 660V, Ith: 20A ; 1 Phase 4 Terminals3 Position (ON-OFF-ON)3.Rating :AC-15: Ue 440V Ie 20ADC-13: Ue 240V Ie 1A4.Panel size:48 x 48 mm,Install Size:36 x 36mmPanel size:64 x 64 mm,Install Size:48 x 48mm5.which terminal will be connected in different position , please read the wiring diagram as a reference.Position ON: 1-2Position OFF : All terminal disconnectedPosition ON : 3-46.Material:Flame retardant PC material, high temperature resistance; Premium copper parts with silver alloy point.7.Suitablefor the thickness between 1mm to 5mm of the mounting board.8.Ideal choicefor electrical wiring in the power switches, speed switches and asynchronous motor for their start-up and reversing, also can make the conversion of the control circuit.9.Widely usedas circuit control switches, test equipment switches, motor control switches and master control switches, signal transfer switches, or change-over switch for electric welding machinery and other equipment.==========Current : 20AMaterial : PlasticSwitch Type : Universal SwitchWarranty : 6 monthModel Number : SZW26-20/D101.1Features : 1 PhaseItem Type : SWITCHESRated insulation voltage(Ui) : 660VConventional heating current(Ith) : 20AUse category 1 : AC-15Rated working voltage(Ue) 1 : 440VRated working current(Ie) 1 : 20AUse category 2 : DC-13Rated working voltage(Ue) 2 : 240VRated working current(Ie) 2 : 1A
- Industrial Switches
- SZW26/LW26-20 D101.1 20A 660V 1 Pole Selector Universal Changeover Rotary Cam Switch ON-OFF-ON 64X64 48X48 mm Panel mount
| Color | ON OFF ON 48X48mm |
|---|---|
| Terminal | Blade |
| Brand Name | JDOUNFMO |
| Switch Type | Bipolar Transistor |
| Circuit Type | 1-way |
| Contact Type | Normally Closed |
| Manufacturer | JDOUNFMO |
| Material Type | Acrylonitrile Butadiene Styrene |
| Mounting Type | DIN Rail Mount |
| Connector Type | Clamp |
| Current Rating | 0.01 Amps |
| Operation Mode | OFF-NONE-ON |
| Item Dimensions | 0.39 x 0.39 x 0.39 inches |
| Number of Items | 1 |
| Contact Material | Alloy Steel |
| Operating Voltage | 1 Kilovolts |
| Specification Met | UL |
| Number of Positions | 1 |
| Lower Temperature Rating | 1 Degrees Celsius |
| Upper Temperature Rating | 1 Degrees Celsius |
| International Protection Rating | IP00 |
