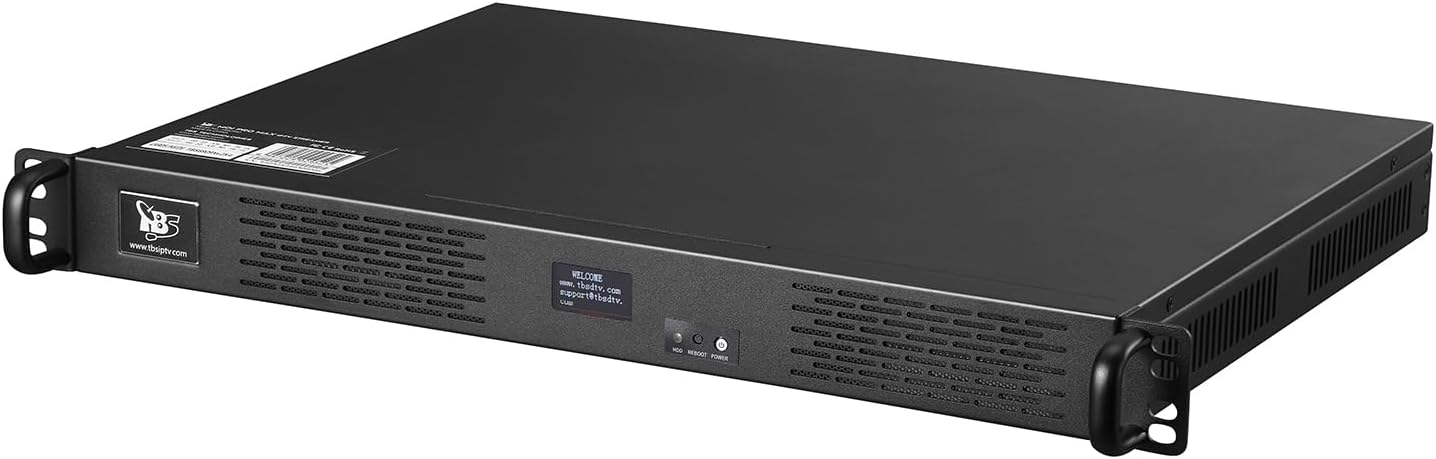

TBS TBS2952 MOI Max Professional IPTV Server Without Tuner Card
4.1 (51 items)
Limited Time Sale$570.00 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 212401387 | Release Date | 2026/04/06 | List Price | $380.00 | Model Number | 212401387 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Key Features: Based on Intel Quad Core High-performance graphics processing Low power consumption Supports up to 32 TV tuners (4 TV tuner PCIe cards of different DVB standards) Compatible with various DVB software Versatile OS Support: Linux Ubuntu/ Rokcy8/ CentOS，Windows XP/Vista/7/8/10 Specifications: Model: MOI Pro MAX Size: 1U Chassis (335*245*49mm) Processor: Intel Embedded Celeron J6412 (Quad Core, 2.6GHz) Graphics: Intel UHD Graphics for 10th Gen Intel Processors Ethernet: 1x2.5Gbps, 1x1Gbps or 1x2.5Gbps & 2x1Gbps (optional) Memory: 8G DDR4-2666 (Up to 32G) Storage: 1 x SATA 6.0 Gb/s SSD: 250G M.2 SATA Front Panel: Power Button, Reboot Button, Power LED, HDD LED Display Interface: 1 x HDMI USB Port: 2x USB 2.0, 2x USB 3.0 SBC dimension: 128 * 104 mm Operating Systems: Rocky Linux System (default) , Linux Centos7, Ubuntu, Microsoft Windows XP/Vista/ 7/8/10 DVB tuner card support: Up to 32 TV tuners (4 TV tuner PCIe cards; recommend no more than 3pcs dual CI PCIe cards such as TBS6910SE) Video capture card support: HDMI / DVB-ASI capture PCIe cards Pre-installed Software: Kylone (default) Tvheadend, VDR, MuMuDVB, DVBlast, dvbdate, dvbscan, dvbdstream, dvbsnoop, scan-s2, szap-s2, tzap-t2, LIRC, telnet, ssh, ftp, samba etc. (Optional) Power consumption: 72W Working Environment: Operating Temperature: 0 to 40 deg C Storage temperature: –20 to 70 deg C
- PROFESSIONAL IPTV SERVER: Powered by Intel Quad Core solution, it can receive live TV signal using built-in TV tuners and stream the channels further through Ethernet to various clients' devices, such as PC, tablet PC, smartphone, and smartTV.

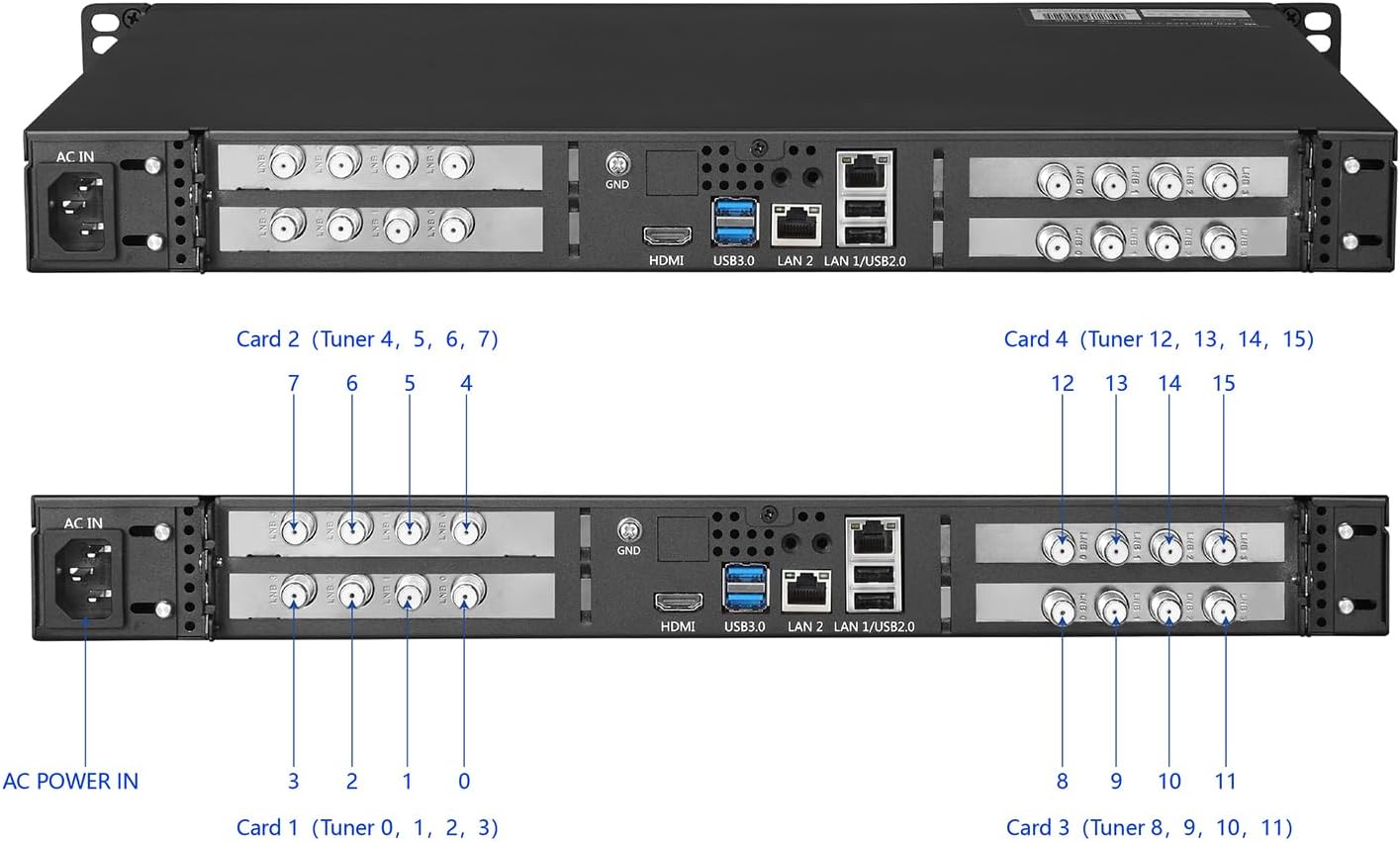

- 4 PCIE SOLTS: Designed by TBSDTV and is compatible with all TBS DVB tuner cards, modulator cards and capture cards
- KYLONE SOFTWARE: It offers a comprehensive set of tools and features to empower users in efficiently organizing digital TV broadcasting service across cable, satellite, terrestrial and IP networks with advanced real-time monitoring
| UPC | 688209293838 |
|---|---|
| Brand | TBS |
| Color | Black |
| RAM Type | DDR4 SDRAM |
| Resolution | 3840 x 2160 |
| Item Weight | 9 Kilograms |
| Display Type | LED |
| Manufacturer | TBS Technologies International LTD |
| Item Dimensions | 16.8 x 1.8 x 12.5 inches |
| Processor Brand | Intel Embedded Celeron J6412 (Quad Core, 2.6GHz) |
| Processor Count | 1 |
| Processor Speed | 2.6 GHz |
| Video Processor | AMD |
| CPU Model Number | Intel UHD Graphics for 10th Gen Intel® Processors |
| Operating System | Linux |
| Processor Series | Intel Centrino |
| Processor Socket | 1 x SATA 6.0 Gb/s |
| Additional Features | Flat |
| Hard Disk Interface | Ethernet 100Base-T |
| Graphics Description | Dedicated |
| RAM Memory Installed | 4 GB |
| Warranty Description | 2 years |
| Hard Disk Description | SSD |
| RAM Memory Technology | DDR3 |
| Connectivity Technology | Ethernet |
| Memory Storage Capacity | 8 GB |
| Ram Memory Maximum Size | 4 GB |
| Specific Uses For Product | Video Editing |
| Cache Memory Installed Size | 8 GB |
| Personal Computer Design Type | All in One |
