TerraBloom ECMF-315, Quiet 12" (313mm OD) Inline Duct Fan with 0-100% Variable Speed Controller, Air Tight Metal Casing, Energy Efficient EC Motor.
4.0 (126 items)
Limited Time Sale$215.99 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 213630384 | Release Date | 2026/04/12 | List Price | $144.00 | Model Number | 213630384 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- TerraBloom EC duct fans are used in indoor grow facilities and vertical farms, heating and cooling transfer, commercial drying and air filtration applications. Our inline blowers can also create negative pressure environments, simulate wind, exhaust odors and smoke as well as intake fresh air from outdoors
- Built with cutting edge brushless EC Motor and dual jet type blades, this blower delivers 1662 CFM airflow rate using 260 Watts at max speed. It translates into only $660 annual cost of 24/7 operation at max speed using $0.29 average cost per KWH. Our fans don’t “purge” or waste electricity at lower speeds.
- Our EC fan gives you a unique flexibility of controls – choose any speed from 0 to 100% using 2 (digital and analog) included speed controller without creating background noise or hum at low speeds. Or choose to upgrade to a wireless remote control (Model: ECMF-WR) or intelligent thermostat speed controller with temperature programming (Model: SC-ECMF). This fan supports 3d party PWM and 0-10V controllers via 3.5mm TRRS port
- Coated steel housing resists rust, protects motor and blades from accidental damage and harsh elements to reduce maintenance in demanding applications. This fan has IP64 ingress protection rating

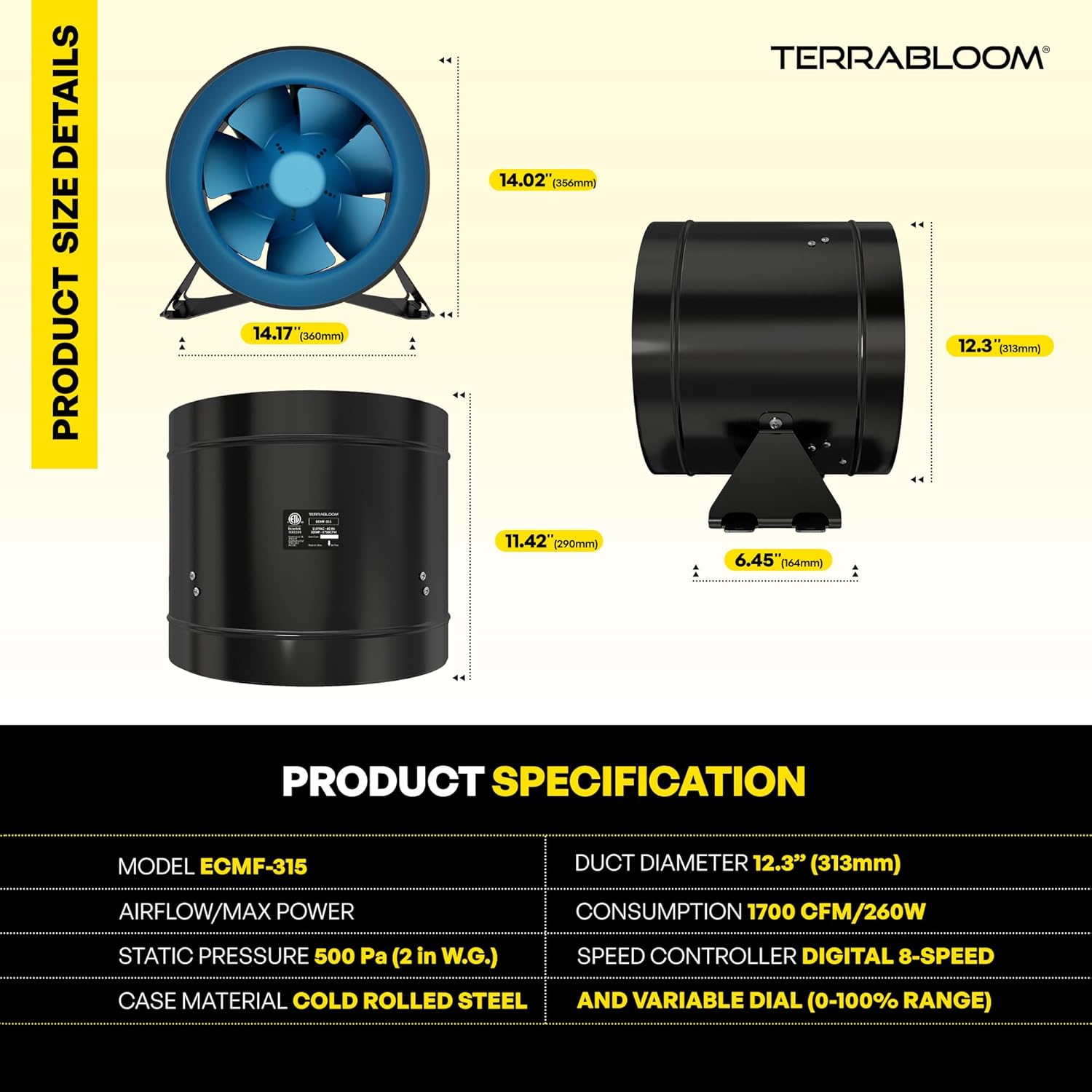

- Duct Diameter: 12.3” (313mm) * Airflow: 1662 CFM * Power: 260W * Noise: 50-75 dBA * Max Pressure: 500 Pa * Bearings: Dual Ball * Size: 14.02 x 14.17 x 11.42 in. * ETL Listed * Independently Tested and HVI Certified Performance * 2 Year Warranty
| UPC | 858355007676 |
|---|---|
| Color | Black |
| Style | Modern |
| Voltage | 120 Volts |
| Wattage | 260 watts |
| Material | Alloy Steel |
| Brand Name | TerraBloom |
| Model Name | ECMF-315 |
| Unit Count | 1.0 Count |
| Finish Type | Powder Coated |
| Noise Level | 50 Decibels |
| Blade Length | 12 Inches |
| Manufacturer | TerraBloom |
| Model Number | ECMF-315 |
| Power Source | AC |
| Mounting Type | Inline Duct Mount |
| Blade Material | Plastic |
| Control Method | Remote |
| Collection Name | Industrial Fans |
| Controller Type | Button Control |
| Manufacture Year | 2019 |
| Number of Blades | 2 |
| Number of Speeds | 8 |
| Air Flow Capacity | 1662 Cubic Feet Per Minute |
| Specification Met | Energy Star |
| Electric Fan Design | Exhaust Fan |
| Included Components | Remote |
| Is Product Cordless | No |
| Indoor Outdoor Usage | Indoor |
| Warranty Description | All ECMF series fans are covered by a 2 year warranty against manufacturing defects |
| Standby Power Shutoff | High |
| Number of Power Levels | 8 |
| Item Dimensions D x W x H | 11.42"D x 14.02"W x 14.17"H |
| Recommended Uses For Product | Cooling rp, Drying, Exhausting |
