TH2689A 0-500V Leakage Current IR Meter, LC: 0-20.00mA; IR: 0.01kohm-99.99G ohm, max Charging Current 500mA

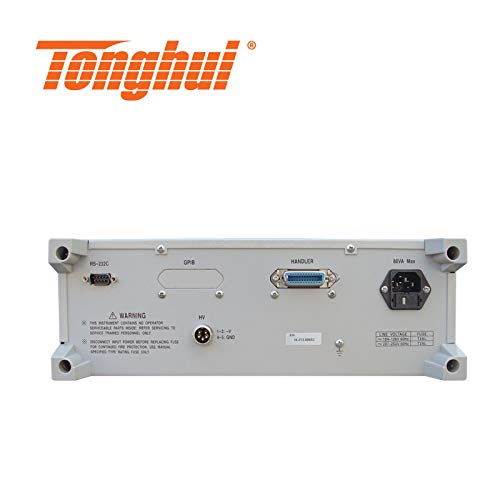

Brief Introduction ■ TH2689/TH2689A is a rapid and precise capacitance leakage current insulation resistance tester. The max. test speed of 18 times/second, good performance and the suitable price provide the user an optimal choice. TH 2689/TH2689A provides max. test voltage: 800v/500v, charge current: 0.5mA─500.0mA( if >100V, the max. power 50W can limit). It is mainly applied in capacitance leakage current, insulation resistance and aluminum electrolysis capacitance anode foil pressure test. Also it can be applied in the confirmation of annihilator, zener diode, neonbulb .etc and leakage current test. Standard Handler interface, stable and rapid test, to reach the sorting effect Standard RS 232 interface, optional GPIB interface, and general RS232 software are provided to meet the demand of connecting with computer and forming auto test system. The instrument can receive the SCPI command to guarantee the compatibility of communication software.

• Leakage Current IR Meter, insulation resistance meter
