UNI-T UT258A Leakage Clamp Meter Digital Amp Meter AC DC Leakage Clamp Meter Auto Range 45Hz-200Hz AC Frequency

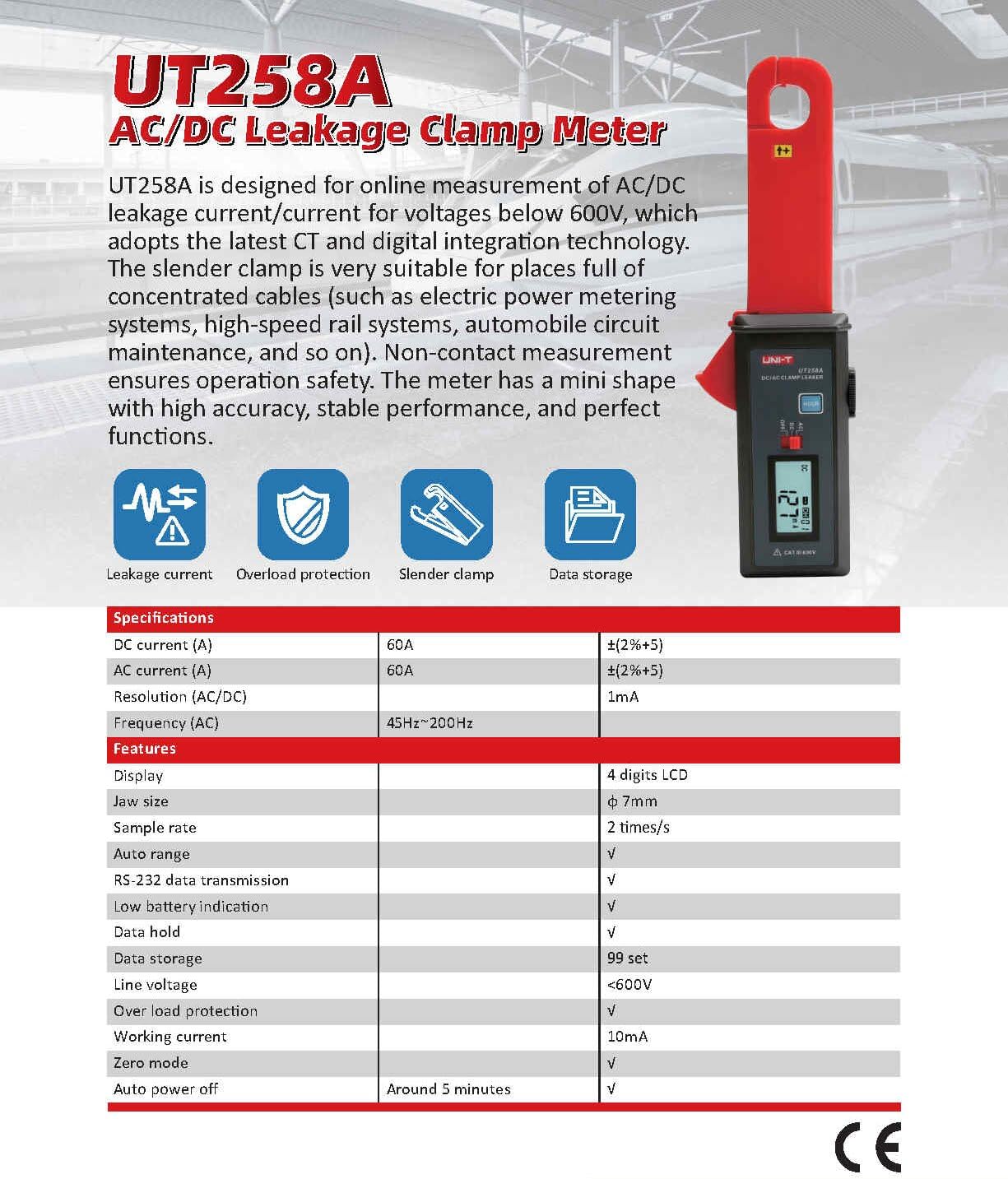

UT258A AC/DC Leakage Clamp Meter●UNI-T’s UT258A is a 10000-count auto range clamp meter. It measures 0mA~60A AC/DC leakage current with zero mode, φ7mm jaw and RS-232 interface. ●UT258A is well designed for on-line measurement of DC/AC leakage current and current below 600V, which adopts latest CT and digital integration technology. Slender clamp is very suitable for places full of concentrated cables (such as, electric power metering system, high-speed rail system, automobile circuit maintenance and so on). Non-contact measurement ensures operation safety. ●The meter has mini shape with high accuracy, stable performance and perfect functions. ● Current (A) 0mA～60.0A AC/DC ±(2%+5) ●Resolution 1mA AC/DC ● Frequency Response AC: 45HZ～200HZ ● Special Functions ●Display Mode 4-bit LCD display √ ●Jaw Size φ7mm (max wires O.D.) √●Auto Range √ ●RS-232 Data Transmission √ ●Data Storage 99 groups ●Zero Adjustment Press ZERO to return to zero, remove residual magnetism induction, and then clamp the wires to be tested. √ ●Data Hold √ ●Line Voltage not beyond 600V √ ●Auto Power Off 5 min √ ●Low Battery Indication Indicates low battery when the voltage is 7.2 √ ●Sampling Rate About 2 sec per time √ ●Working Current 10mA √ ●◆

• 1.4-digit LCD display 2. With RS232 interface, data can be stored and uploaded to the computer, and then saved and printed. 3. Clamp CT, non-contact measurement
• 4. AC and DC leakage current, current measurement, polarity indication 5. The zero adjustment function makes the measurement more accurate
• 6.99 sets of data storage 7. Data storage 8. Security level CATI1600V
