V2-L Dual Color CCT LED Controller 12-24VDC 36V CV Push Dim 2CH 8A/CH 2 Channel Dimming(R2 Remote Only)

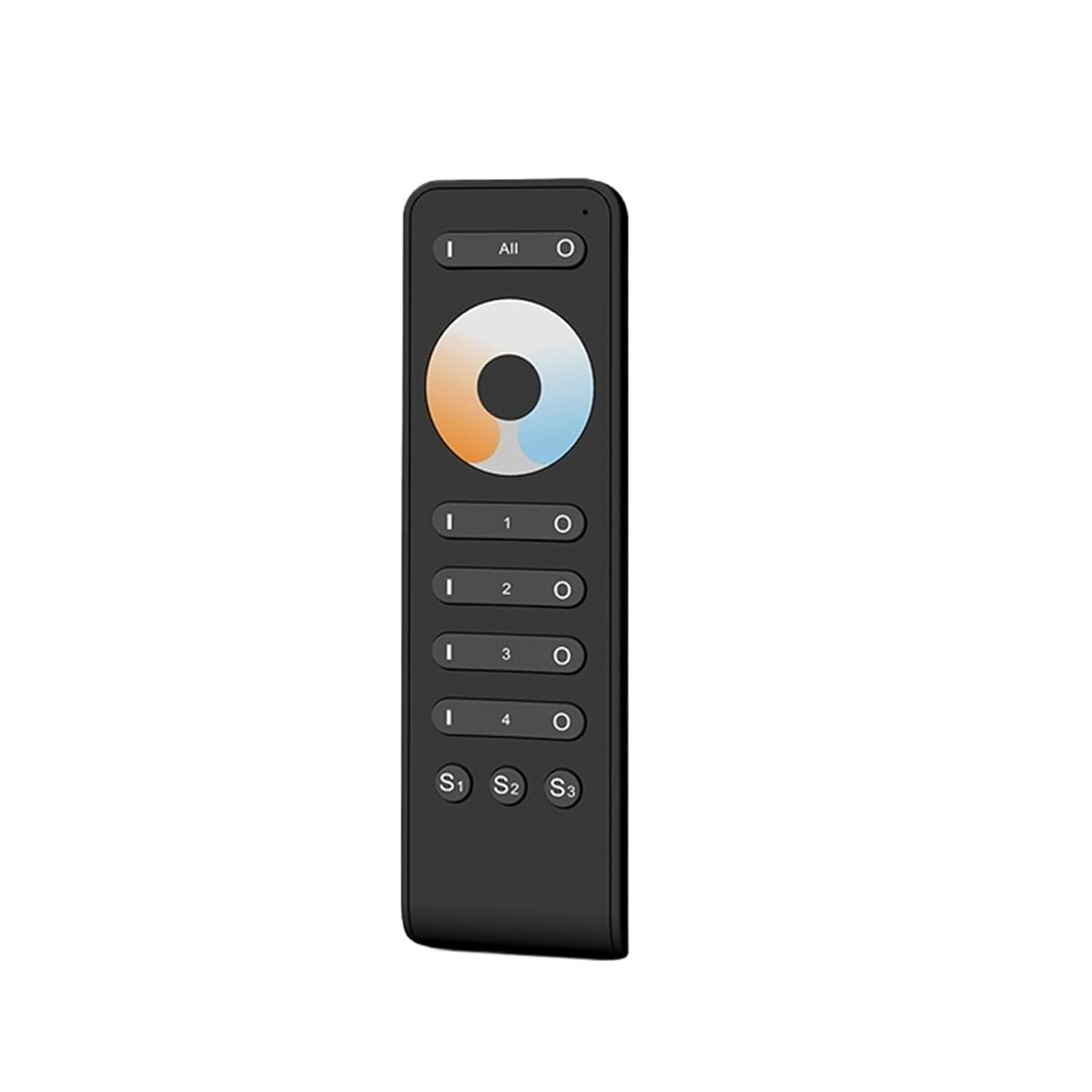

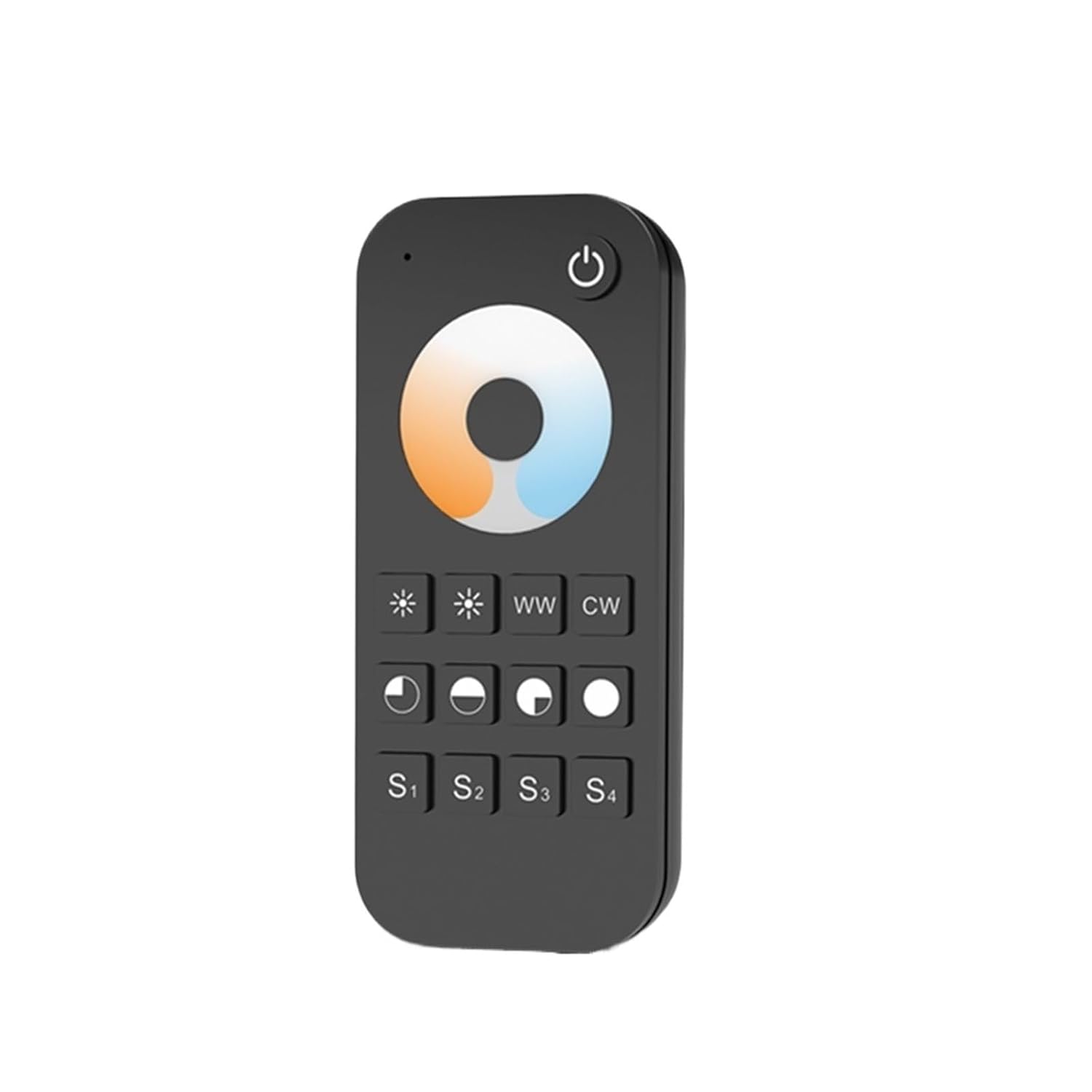

Outlet & Switch CombosTechnical parameters:V2-L (receiver)Model: V2-L (constant voltage LED dimmer)Input voltage: 12-36V DCOutput current: 2CH, 8A/CHOutput power: 2x(96-288)WOutput type: constant voltageDimensions (mm): 175x45x271. Matching: Short press the matching button, and within 5 seconds, press the remote control's power button or area button.2. Delete: Press and hold the matching button for 5 seconds to delete all matching remote controls.3. Multi-zone remotes only use zone keys to match each zone receiver.External push button switch:switch1. Short press: turn on/off the light.2. Long press (1-5 seconds): When the light is on, continuously increase or decrease the brightness.3. Long press (10 seconds): When multiple controllers share a switch key, simultaneous adjustment can be achieved.scene1. Short press: select 8 scenes.2. Long press (10 seconds): When multiple controllers share a scene key, simultaneous selection is achieved.V2-L controller needs to be used with 2.4G dual white remote control:This dimmer can be matched with various single-zone or multi-zone 2.4G dimming remote controls.Option 1: Use match keys1. Matching: Short press the matching button, and within 5 seconds, press the remote control's power button.2. Delete: Press and hold the matching button for 5 seconds to delete all matching remote controls.Option 2: Use power-ups1. Pairing: Turn off the power, then turn the power back on. Quickly press the remote control switch button 3 times within 5 seconds after turning it on. The light flashes 3 times to indicate successful pairing.2. Delete: Turn off the power, then power on again. Quickly press the remote control's power button or defense zone button 5 times within 5 seconds after turning it on. The light flashes 5 times to cancel the link.Features: LED dimmer switch CCTModel: V2-LCertification: CCC, CE, EMC, LVD, ROHSMaterial: plasticmaximum. Load power: 576WOrigin: Mainland ChinaProduct Type: DimmerInput voltage: 12-36V DCOutput current: 2CH, 8A/CHOutput power: 2x(96-288)WOutput type: constant voltageDimensions (mm): 175x45x27
