Wiring Connecting Terminals - BGA100-1.0 Open TOP Burn in Socket pin Pitch 1.0mm IC Size 14 * 18mm 12 * 18mm BGA100-1.0 BGA100 VFBGA100 Burn in Socket

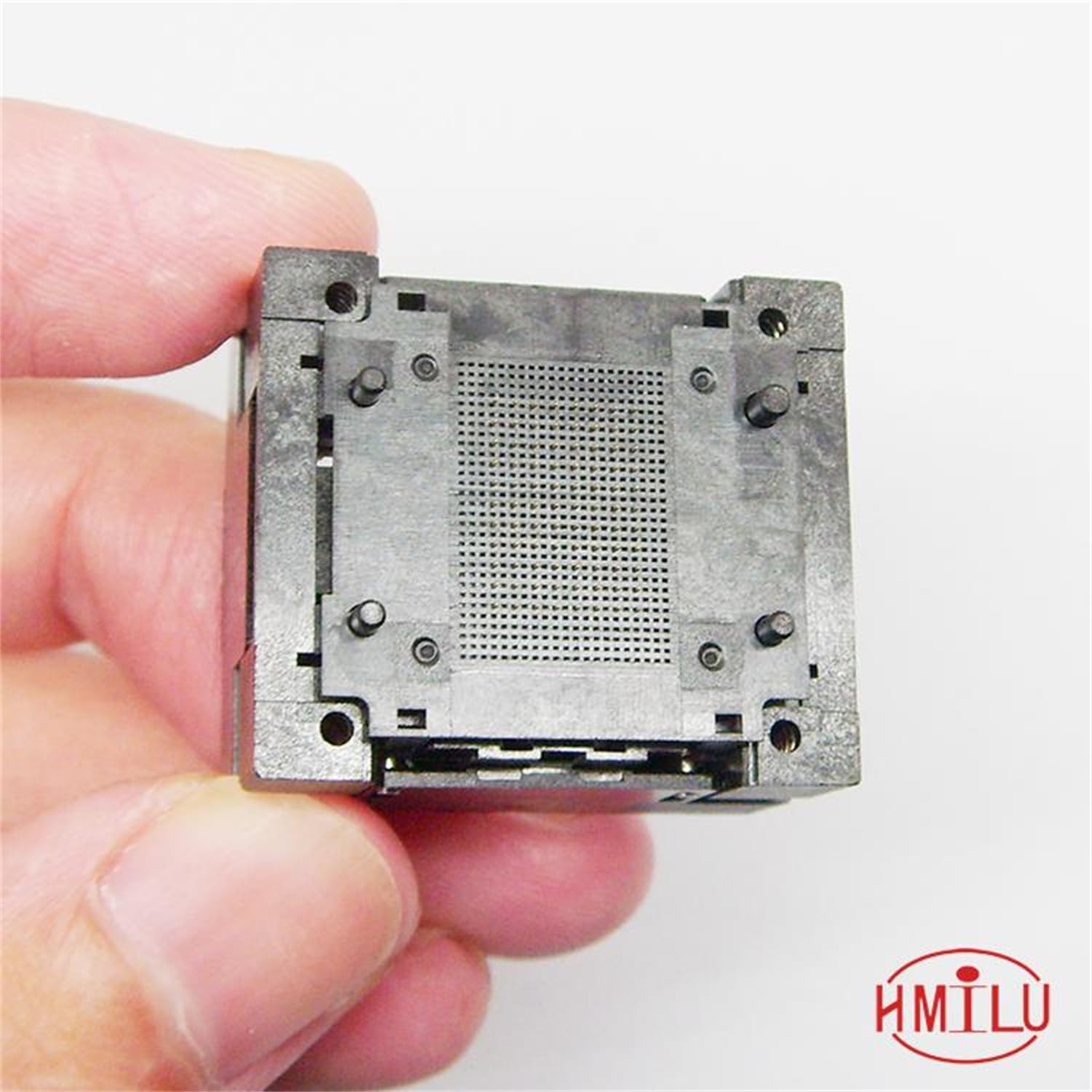

BGA100-1.0 OPEN TOP Burn in socket pin pitch 1.0mm IC size 14*18mm 12*18mm BGA100-1.0 BGA100 VFBGA100 burn in socket Specifications: Part number:BGA100(14*18mm 12*18mm)-1.0 socket IC Package includes:BGA100 , VFBGA100 Pin Pitch:1.0mmPin Count:80 pinsIC Size:14*18mm 12*18mmStructure:OPEN-TOP Material & Performance: socket Body: PEIContacts:Beryllium Copper AlloyContact Plating:Gold over NickelOperation Force:2.0KG min, the more PINs the greater force.Contact Resistance:50m maxDielectric:700V AC for 1 minuteInsulation Resistance:1,000M 700V DCMax Current Capacity : 1ATemperature Rating:-55~+175 Life Span 25,000 Times (Mechanical)A:Tips:, ,please leave message to us.Thanks. B.BGA socket New creation a.connect with PCB ways Innovation Welding structure : No need of welding structure: Way:Fix by welding Way:Fix by 4 screws Pin length1.83mm Pin length0.25mm Two structure Features: 1.Welding structure : Adopt traditional welding type to fix the socket and PCBA board , stable but waste time and effort , and once the socket is welded , it cant be recycle . 2.No need of welding structure : Adopt innovative screws locking type to fix the sockets and PCBA board , make sure contact is stable , meantime shorten the assembly time , time-saving and reduce effort , and socket can be removed from the PCBA board , recycle and reduce test cost . b.Connect with IC ways Innovation 1.Open-top/Clamshell structure2.Accommodates pitch :4/0.5/0.65/0.8/1.0mm3.Compact size and low Actuation Force4.Field exchangeable package location plate5.Ucontact support any type of solder ball shapeBall\\no ball\\damaged ball,the drop of contactsurface is more than 0.2mm C.H

• 1.Welding structure :
• Adopt traditional welding type to fix the socket and PCBA board , stable but waste time and
• effort , and once the socket is welded , it cant be recycle .
• 2.No need of welding structure :
• Adopt innovative screws locking type to fix the sockets and PCBA board , make sure contact is
