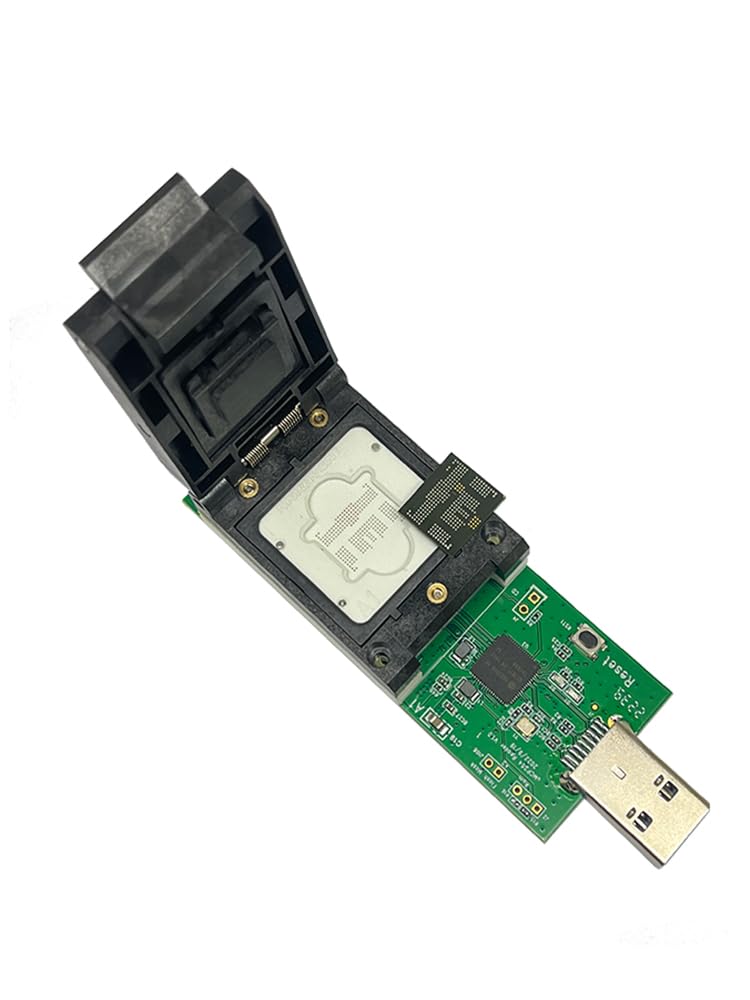

Wiring Connecting Terminals - UEMCP254 to USB3.0 Programmer Adapter Socket 0.5mm IC PIN Pitch Prise Size 11.5 * 13mm IC Connector
4.0 (24 items)
Limited Time Sale$54.00 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 211036658 | Release Date | 2026/04/04 | List Price | $36.00 | Model Number | 211036658 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Specifications:Part number:UEMCP254 TO USB3.0IC Package includes:EMCP254,Pin Pitch:0.5mmPin Count:37pinsIC Size:11.5*13mmMain control chip SM3350Material & Performance:socket Body: PEIContacts:Beryllium Copper AlloyContact Plating:Gold over NickelOperation Force:2.0KG min, the more PINs the greater force.Contact Resistance:50m maxDielectric:700V AC for 1 minuteInsulation Resistance:1,000M 700V DCMax Current Capacity : 1ALife Span 1500Times (Mechanical)
- Package Includes: EMCP254, | Pin Pitch:0.5mm | Pin Count:37pins | IC Size:11.5*13mm | Main control chip SM3350 | Material & Performance:socket Body: PEI | Contacts:Beryllium Copper Alloy | Contact Plating:Gold over Nickel | Operation Force:2.0KG min, the more PINs the greater force. | Contact Resistance:50m max | Dielectric:700V AC for 1 minute | Insulation Resistance:1,000M 700V DC | Max Current Capacity : 1A | Life Span 1500Times (Mechanical)
| Brand Name | Generic |
|---|---|
| Manufacturer | CHIKIMIKI |
